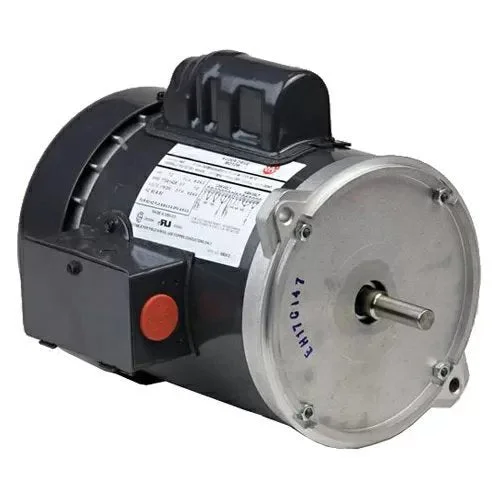

US Motors® Agri-Duty Fan Motor – 1 HP

Description

This single phase, 1HP Agri-Duty Fan Motor is designed for direct drive and vent fans in poultry and livestock houses. It features an automatic reset thermal overload protector.

Features

• Ball bearings
• 40° C ambient, continuous duty
• Totally enclosed air over (TEAO) enclosure
• Rigid base
• Class B insulation
• Automatic reset thermal overload protector
• Built-in conduit box
• Capacitor start/capacitor run
• 2-year manufacturer warranty

Specifications

• 1 HP
• 1 phase, capacitor start/capacitor run
• TEAO motor enclosure
• 0.8 kilowatts
• 4 poles
• 1,725 RPM
• 60 Hz
• 115/208-230 primary volts
• 56 frame
• Rigid mount
• 1.15 service factor
• 12.9″ “C” diameter
• 37 lbs shipping weight
