Description

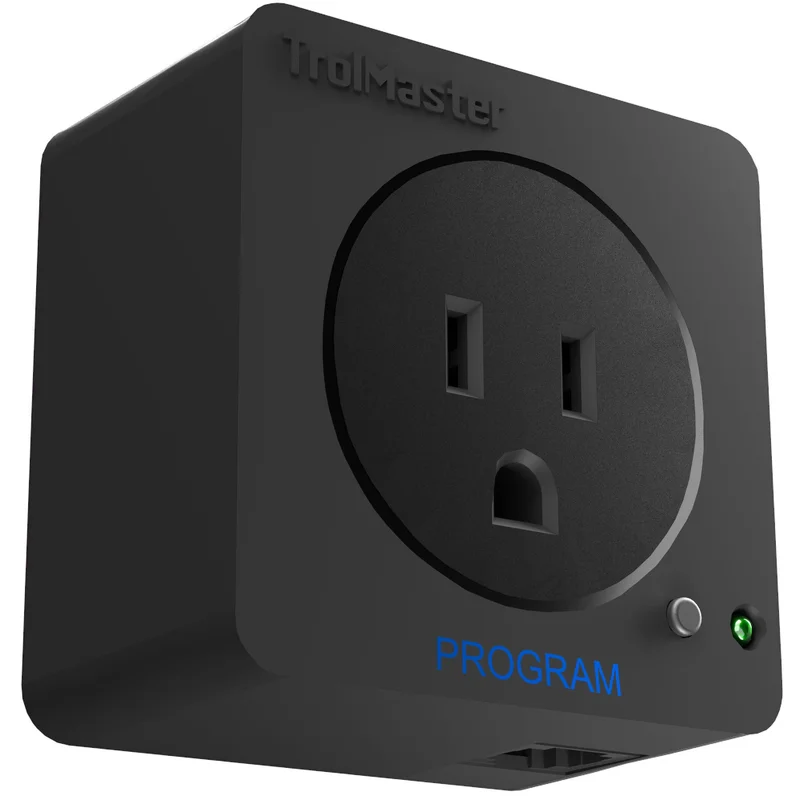

The TrolMaster DSP-1 Program Device Station functions as a multi-purpose timer module for the Hydro-X control system. It allows users to connect and control devices that need to operate on a set schedule or timer.
The DSP-1 can control devices operating under global voltage standards (100–240 VAC, 50/60 Hz) with a capacity of up to 10 amps, making it suitable for a wide range of timed equipment.
Key Features
-
Multi-function timer module for Hydro-X systems
-
Controls devices based on set schedules or timing programs
-
Compatible with 100–240 VAC, 50/60 Hz global voltage
-
Supports devices up to 10 amps
-
Manual override button allows users to turn devices ON or OFF
-
LED status indicators provide clear system feedback
-
Includes global plug types
LED Status Indicators
| LED Status | Meaning |
|---|---|
| Fast Blinking Green | Module is not addressed to the controller or connection issue. Press the small button to link the module. |
| Slow Blinking Green | Module is connected to the controller and currently OFF. |
| Solid Green | Module is connected and currently ON. |
| Blinking Red | Module has been overloaded. Unplug the module to reset it. |
Compatibility
All DS series modules include global plug types. Check the compatibility chart to confirm it matches your country’s electrical outlets.
