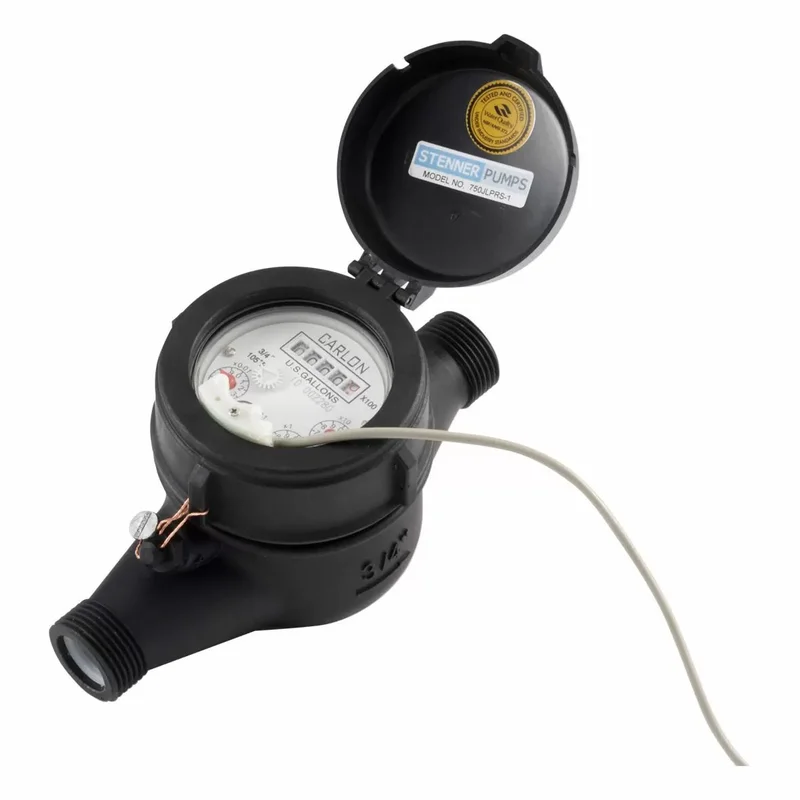

Stenner Pumps Plastic 1 1/2″, 1 PPG Water Meter

Description

These Stenner Plastic Water Meters utilize a reed switch that provides a pulsing dry contact signal. The meter sends a signal to actuate the pump to dose according to the water volume. This pump provides 1 ppg and 2 – 100 gpm. Certified by IAPMO to ANSI/NSF 372, low lead.

Specifications

• Accuracy: 2% when operating between minimum and maximum flow ranges
• Temperature Range: 35 – 122 F (1.7 – 50 C)
• Pressure Rate: 15 – 100 psi (1.0 – 6.9 bar)
• Maximum Current: 20mA
• Maximum Voltage: 24VDC or VAC
• Sensor: Reed Switch
• Cable Length is 6′

Materials of Construction:

• Body: Engineered reinforced plastic (nylon)
• Internal: Engineered thermoplastic
• Magnet: Alnico
