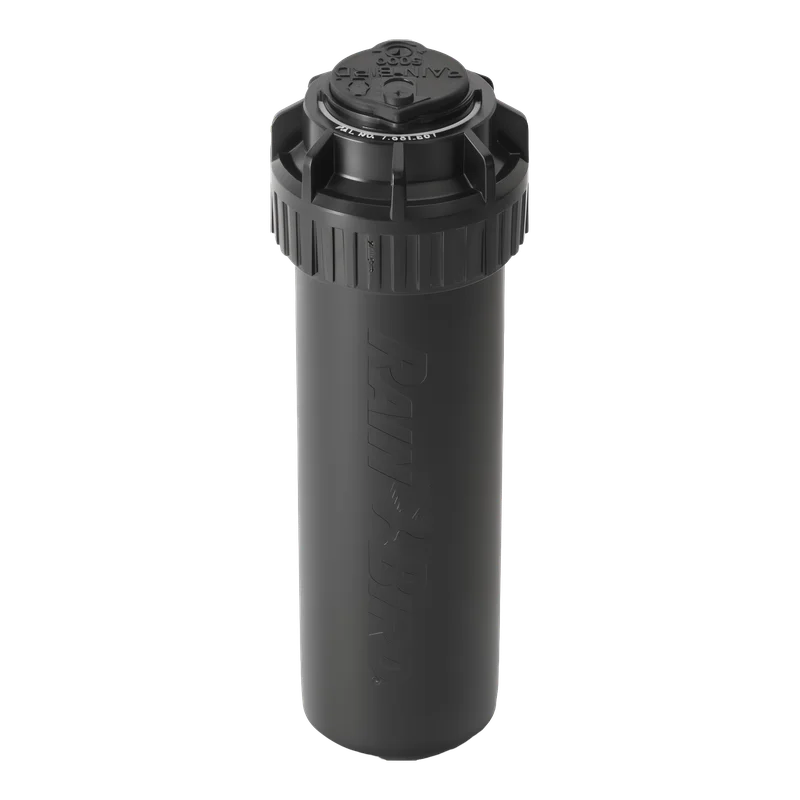

Rain Bird 5004 Plus Pop-Up Rotor Sprinkler, 4 Inch, Part-Circle 40-360 Degree

Description

Cover medium-to-large lawn zones with the Rain Bird 5004 Plus Rotor Sprinkler — the workhorse rotary head residential and light-commercial installers reach for when a spray head can’t throw far enough. The closed-case gear-drive mechanism rotates the stream smoothly across a 40°-360° adjustable arc, watering up to a 35 ft radius without the misting and overspray you get from a stationary spray head. 4 in pop-up clears most lawn-edging conditions, and the heavy-duty case takes mower and foot-traffic abuse that destroys consumer-grade rotors.

Why Irrigation Pros Pick the 5004

• Adjustable 40°-360° arc — one body covers corner, side, and full-circle zones
• Throws 25-50 ft radius depending on nozzle — bridges the gap between spray heads and impact sprinklers
• Smooth closed-case gear drive — consistent rotation rate, no grass-blade interference
• 4 in (10.2 cm) pop-up height clears most lawn edging and groundcover
• Heavy-duty case — takes mower impact and foot traffic without cracking
• Top adjustment screw lets you dial in the arc and radius without removing the body
• Rain Curtain nozzle technology produces uniform large droplets — less drift, better coverage in wind
• Compatible with the full Rain Bird 5000 Series Plus nozzle set (MPR, full nozzles, etc.)
• Five-year trade warranty

Where It Shines

• Residential lawns above ~15 ft minimum throw distance
• Light commercial lawn installations
• Sports field perimeter and infield watering
• Open-area irrigation where spray-head coverage falls short
• Zones with mixed sun/wind that need uniform droplet delivery

Specifications

• Model: 5004 Plus
• Pop-up height: 4 in (10.2 cm)
• Pattern: Part-circle adjustable 40° to full circle 360°
• Throw radius: 25-50 ft depending on nozzle
• Recommended operating pressure: 25-65 psi
• Flow rate range: 0.75 to 7.4 gpm (depending on nozzle selection)
• Drive type: Closed-case gear drive
• Rotation: Smooth continuous reversing
• Adjustment: Top arc and radius adjustment screws
• Compatible nozzles: Full Rain Bird 5000 Series Plus nozzle set (sold separately)
• Inlet: 3/4 in NPT female thread
• Warranty: 5-year trade
• Approximate weight: 1 lb

Available Pop-Up Heights

This is the 4 in pop-up version, the standard for residential lawn installs. The same body is also offered in 6 in (5006 Plus) for taller turf and 12 in (5012 Plus) for shrub beds. Same rotor mechanism and nozzle compatibility across the family.

Note: This is the body only — choose your Rain Bird 5000 Series nozzle separately based on the throw distance and flow rate you need for the zone. Most 5000-series rotors come pre-installed with a standard nozzle; check the body cap to confirm.
