Description

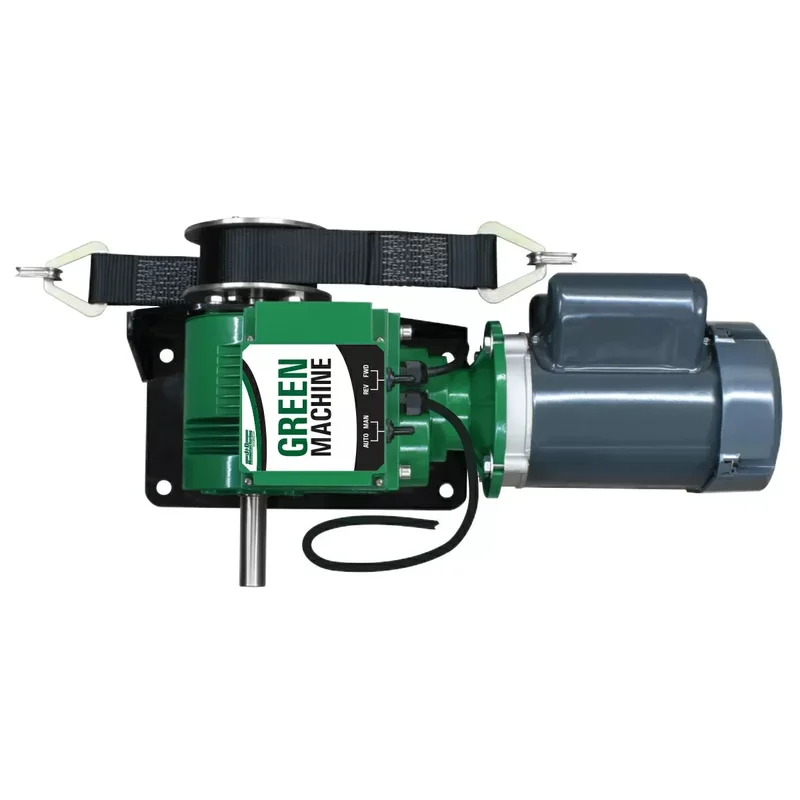

Get convenience and peace of mind from the Green Machine from J&D Manufacturing. This inlet, door, and curtain strap machine offers minimal maintenance, external switches, and pull strength.
Features
- Durable long life backed by a 2-year manufacturer’s warranty on motor & gearbox
- Totally sealed & lubricated gearbox for minimal maintenance
- 2,500 lb pull strength
- Easy-set limit switches for fast & easy installation
- Added protection of neutral kill, a safety function to prevent limit switch override
- 2.1 shaft RPM
- Average 28″ per minute travel
- Ships completely assembled
- Ideal for drop-down curtains, tunnel doors & other wall or ceiling inlets
- Strong, 14′ nylon belt
Mounting
- Heavy-duty steel mounting plate for secure & versatile mounting options
Gearbox
- 2,500 lb pull capacity
- Totally sealed IP66; no vent plug needed & factory-filled with permanent synthetic lubricant
- Built-in travel limit system; independently adjustable & easy to change switches, neutral kill prevents limit switch override
- If unit loses power, it will continue to hold the load
- Consistent performance down to 5° F
External Switches
- Manual operating; forward & reverse
- Auto/manual
Motor
- Instant reverse motor
- Reliable thermal overload protection
- 10-min continuous duty
- Manual/emergency override shaft
Application Specifications
- Lifts Curtains: 500′ long
- Inlet Vents: 100 (Cabled 2:1 to slow)
- Tunnel Doors: 240′ long
| QC Part # | Mfg Part # | PUll Capacity | Speed | Torque | Gear Ratio | Shaft RPM | Volts | Hz | Phase |
|---|---|---|---|---|---|---|---|---|---|
| 93539 | PSCW2500 | 2,500 lb | ~2’/min | 800 Nm | 810:1 | 2.1 | 115 | 60 | 1 |
