Description

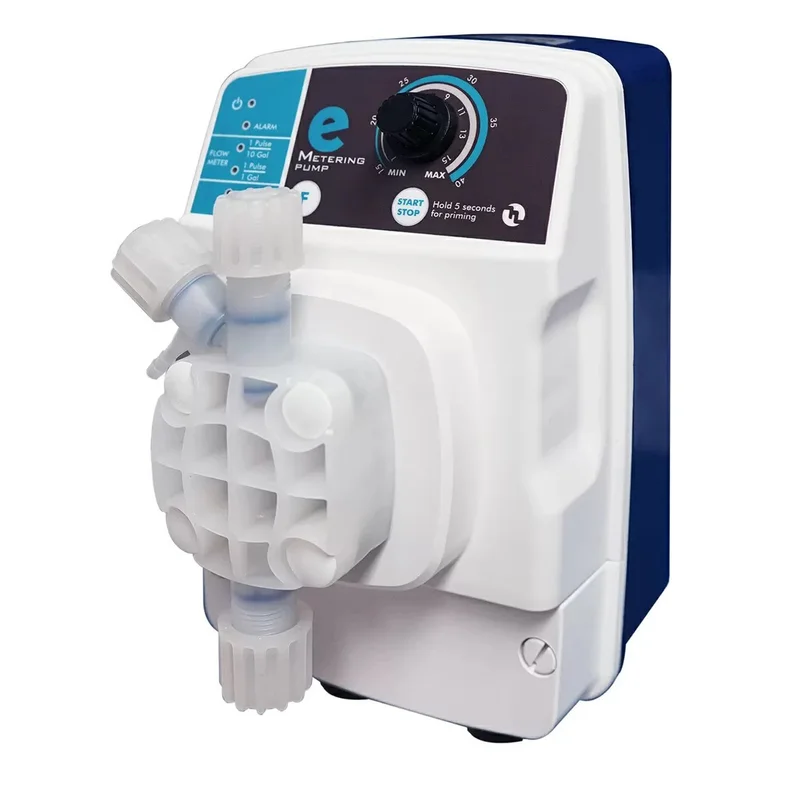

The perfect answer for your water treatment needs, the eMP Livestock Water Treatment Metering Pump is simple to use, highly reliable and compact in size.
Features
- Automatically adjusts injection speed to the water flow for proportional delivery
- Dual scale dial for easy stroke adjustment
- Operates with 1 pulse per 1 gallon or 1 pulse per 10 gallon water meter
- Superior diaphragm technology
- No squeeze tubes that can break
- PVDF solenoid head for enhanced chemical resistance
- IP65 acid resistance housing
- Self priming, the pump head is equipped with a manual air bleed for fast priming
- Turns off automatically when the chemical container is empty
- Pump will turn OFF if pressure exceeds 145 PSI
Specifications
- Flow: 0.26 GPH
- Max Pressure: 145 PSI
- Weight: 6.7 lbs
- Stroke Output (ML): 0.09 @ 145 PSI (10 Bar)
- Max Pulses Per Min: 180
- Mount Type: Wall mount
- Voltage: 120V
Wetted Parts
- PVDF pump head
- Teflon (PTFE) diaphragm
- Aflas (TFE/P) seals
- Polyethylene (PE) discharge tubing
- PVC suction tubing
- Ceramic Ball valves
